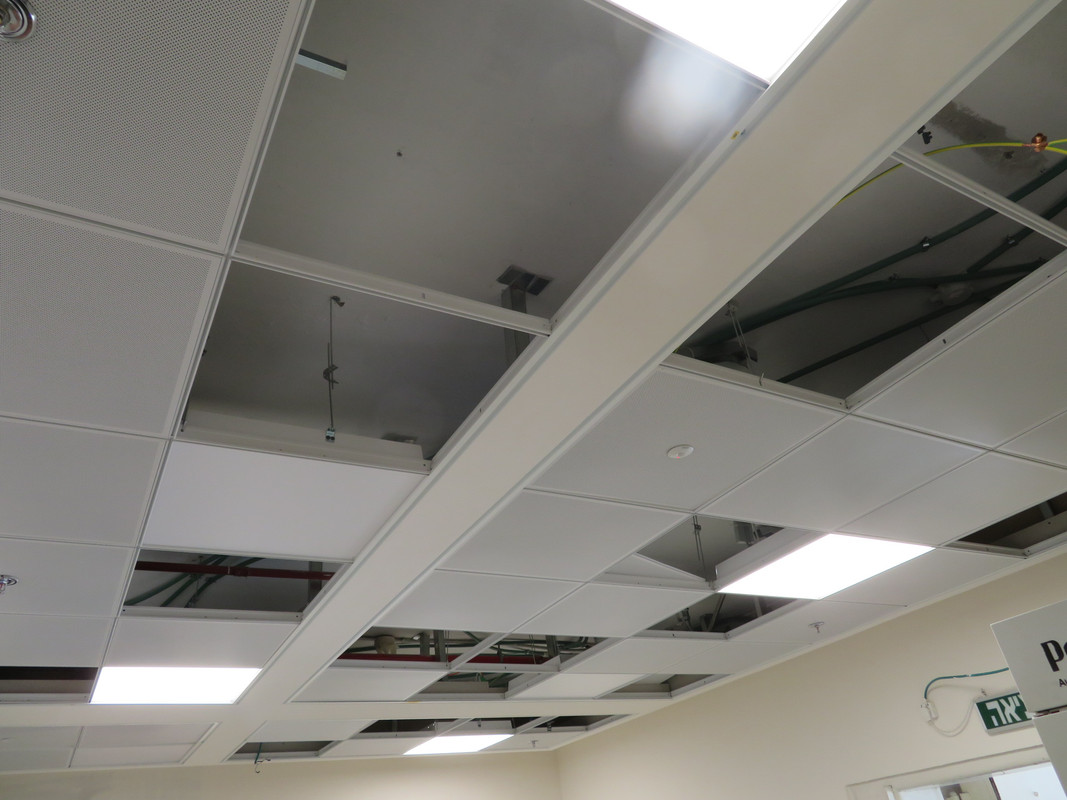

The idiots in Carmel hospital, installed drop ceiling with LED panels at the entrance to Carmel hospital

The idiots in Carmel hospital, installed drop ceiling with LED panels at the entrance to Carmel hospital

Click to view full size image



As a result, the place is overlit, and the former Chinese 54W T5 HO weatherpacks buried above the tiles while still operating.
