Look closer : The 2 fat MOVs have 3 leads. Looks like they have a thermal cutout embeded in them Now what is odd to me is that the thin one in the center is not protected and they chose to put that between Live and Earh (why ). Anyway in such case the only other protection for it is the RCD. Now if we assume that it "begins to leak" at say 300V, and the RCD is 30mA, which gives us a theoretical maximum of 9W dissipation. So if the voltage indeed will happen to be such that causes it to "leak" couple tens mA, can it stay like that dissipating few W and catching fire ? or it will quicky develop into a breakdown and trip the RCD ?
|
|
|
Logged
|
|
Medved
Member
Offline
Gender:
View
Posts
View Gallery
|
I would need better, more detailed photo of it look like and how that is arranged, I really can not see that on the picture.
If the two fat ones are 3 pin, there could be indeed something included, most likely some sort of PTC. But the PTC's could not be used alone on mains, as their voltage and current breaking capability is rather limited. It tend to end up in the very hot short circuit mode (when increaseing the temperature beyond the "switch off point", the resistance tend to go back down, until it end up as a low impedance short), mainly when exposed to really high current, what heat up the device very unevenly. So it need the fuse as well... I just do not trust the PTC "resettable fuses" when used alone. They are good to prevent the real fuse blowing up, but they are simply not that reliable in breaking the faulty circuit. Mainly when there is abnormally elevated voltage present, as the prime cause of all that heating.
The MOV to PE: The MOV's go into a kind of low impedance breakdown when overheated, so in case it become overheated, it enter a kind of thermal runaway, what "make sure" the overcurrent fusing (or the RCD) trip in time.
|
|
|
Logged
|
No more selfballasted c***
|
dor123
Member
Offline
Gender:
View
Posts
View Gallery
Other loves are computers, office equipment, A/Cs
|
|
|
Logged
|
I"m don't speak English well, and rely on online translating to write in this site. Please forgive me if my choice of my words looks like offensive, while that isn't my intention.
I only working with the international date format (dd.mm.yyyy).
I lives in Israel, which is a 220-240V, 50hz country.
|
Medved
Member
Offline
Gender:
View
Posts
View Gallery
|
Hard to say, what it is, the 3'rd lead seems to be connected only to the LED's... It could be the PTC, but it could be as well two sections, so allow to serve as a trigger for relay cut out,...
In any case, from safety perspective, knowing how PTC's behave on higher voltages, it does not look to be able to replace the real fuse...
|
|
|
Logged
|
No more selfballasted c***
|
dor123
Member
Offline
Gender:
View
Posts
View Gallery
Other loves are computers, office equipment, A/Cs
|
Hard to say, what it is, the 3'rd lead seems to be connected only to the LED's... It could be the PTC, but it could be as well two sections, so allow to serve as a trigger for relay cut out,...
In any case, from safety perspective, knowing how PTC's behave on higher voltages, it does not look to be able to replace the real fuse...

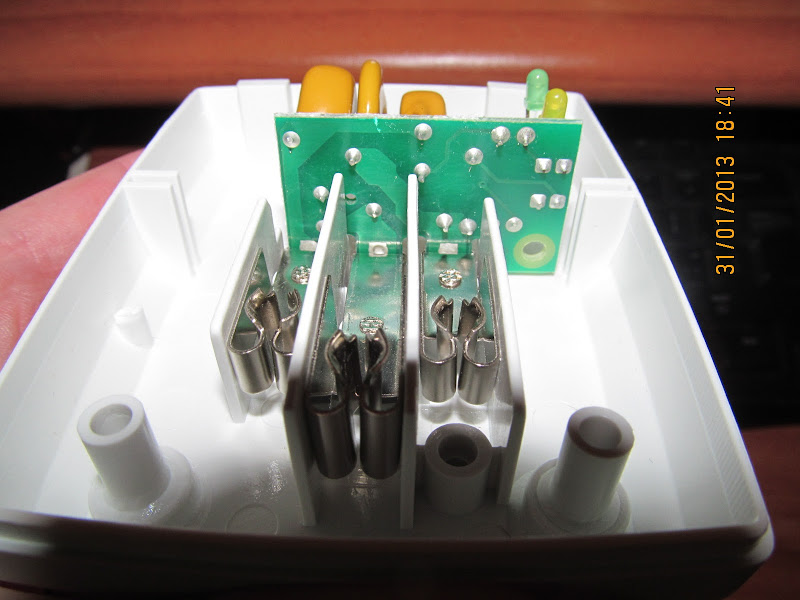

Medved: If you need, I can put only the two closeup pictures from the three pictures collage i put earlier, so they will look larger and clearer to you: Upper part of the PCB: Lower part of the PCB:
|
|
|
Logged
|
I"m don't speak English well, and rely on online translating to write in this site. Please forgive me if my choice of my words looks like offensive, while that isn't my intention.
I only working with the international date format (dd.mm.yyyy).
I lives in Israel, which is a 220-240V, 50hz country.
|
Medved
Member
Offline
Gender:
View
Posts
View Gallery
|
I see there the 3-pin MOV's being connected by their side contact between the protected potentials and the middle pin used only for some indication purposes.
Still, I don't know what the 3 pin MOV's are about, for that I would need at least their detailed datasheet. And still, even when they contain a PTC, I'm suspicious about their ability to remain safe without any fuses - the PTC's just proved to me to be not reliable above ~40V, regardless of the thickness, as they tend to heat up unevenly...
|
|
|
Logged
|
No more selfballasted c***
|
Ash
Member
Offline
View
Posts
View Gallery
|
It stroke me at once when i looked in the "from below" picture that there are too many soldering points underth MOVs - so they must have 3 leads
The titles on the LEDs are "protection active" and "protection to earth active". It looks to me as if there is a non resettable (one time) fuse in there, and the LEDs are connected to the midpoint between the MOV and the fuse so if the fuse is blown they LEDs will stay off
|
|
|
Logged
|
|
Medved
Member
Offline
Gender:
View
Posts
View Gallery
|
The shape look more like there would be the PTC style ressetable fuses. The non-ressetable fuse won't fit there into quite thin disc shape...
|
|
|
Logged
|
No more selfballasted c***
|
Ash
Member
Offline
View
Posts
View Gallery
|
Then it would be "wait for LED to come on", not "replace unit if LED is not on" in the instructions....
|
|
|
Logged
|
|
Medved
Member
Offline
Gender:
View
Posts
View Gallery
|
Well, when the VDR's remain functional, the LED would be always ON even when the VDR's are effectively disconnected by the PTC, as the PTC holding current would be enough to feed the LED's. And from this state the circuit would auto-recover, so there is no need to panic the user. The LED's would turn OFF only after the VDR fail short circuit (what is their normal failure mode at their end of life or after very heavy overload, in the normal application even the desired one).
But as the VDR's tend to fail short circuit, the PTC's tend to end in that mode too...
|
|
|
Logged
|
No more selfballasted c***
|
Ash
Member
Offline
View
Posts
View Gallery
|
For the PTC to have any "hoding current" the MOVs have to remain shorted. If so the LED won't light at this time
But why it would be PTC ? Cant it be the one-time thermal fuse ?
I asked Dor what is the part number of the MOVs in there but he says the number is written on the inner side and they won't bend to the side. Applying force would damage them since the pins are not in 1 line
|
|
|
Logged
|
|
Medved
Member
Offline
Gender:
View
Posts
View Gallery
|
The MOV's normally carry current only when the voltage become above the threshold. Once the voltage drop, they are not conductive anymore. So normally they carry only the current necessary to keep the voltage on their clamping level during the overvoltage spike. When the spike disappear, they stop conducting and so remain passive.
With a longer overvoltage the PTC lower the current, but the VDR continue to clamp the voltage. After thevoltage lower back, the VDR stops conducting, so the whole thing cool down and again, the PTC get closed.
With the eventual thermal breakdown the temperature is limited by the PTC below the limit, where the VDR clamping voltage get down, so if it is not damaged, it just recover by itself.
Only when the MOV get damaged by the overvoltage (into a short circuit), the PTC keep the current at it's holding current and the LED stop illuminating, as it is shorted by the failed MOV.
|
|
|
Logged
|
No more selfballasted c***
|
dor123
Member
Offline
Gender:
View
Posts
View Gallery
Other loves are computers, office equipment, A/Cs
|
|
|
Logged
|
I"m don't speak English well, and rely on online translating to write in this site. Please forgive me if my choice of my words looks like offensive, while that isn't my intention.
I only working with the international date format (dd.mm.yyyy).
I lives in Israel, which is a 220-240V, 50hz country.
|
Ash
Member
Offline
View
Posts
View Gallery
|
In the 1st pic i can about read "431" that would be the breakdown voltage 430V DC, but what is more interesting is the letters
Really, if you can take this pic with the camers you can read the text there. Try it
|
|
|
Logged
|
|
dor123
Member
Offline
Gender:
View
Posts
View Gallery
Other loves are computers, office equipment, A/Cs
|
As the pictures I put, are on the max size allowed in Picasa, I can post the numbers and letters by myself: Left and right thick MOVs reads: "TVT 14431" Center thin MOV reads: "TVR 14???" and the rest is unknown as that MOV have been distorted.
|
|
|
