Author Topic: Why the British neon floodlight lamp were called NE/H  (Read 6867 times)
Olav
Member
***
Offline

Gender: Male
View Posts
View Gallery


Olav Kettner
Re: Why the British neon floodlight lamp were called NE/H « Reply #30 on: February 03, 2023, 05:10:50 PM » Author: Olav
A small addition to this post from a catalogue.
(Corrected by a note from Alex: these lamps existed in the GDR in the 1950s.)

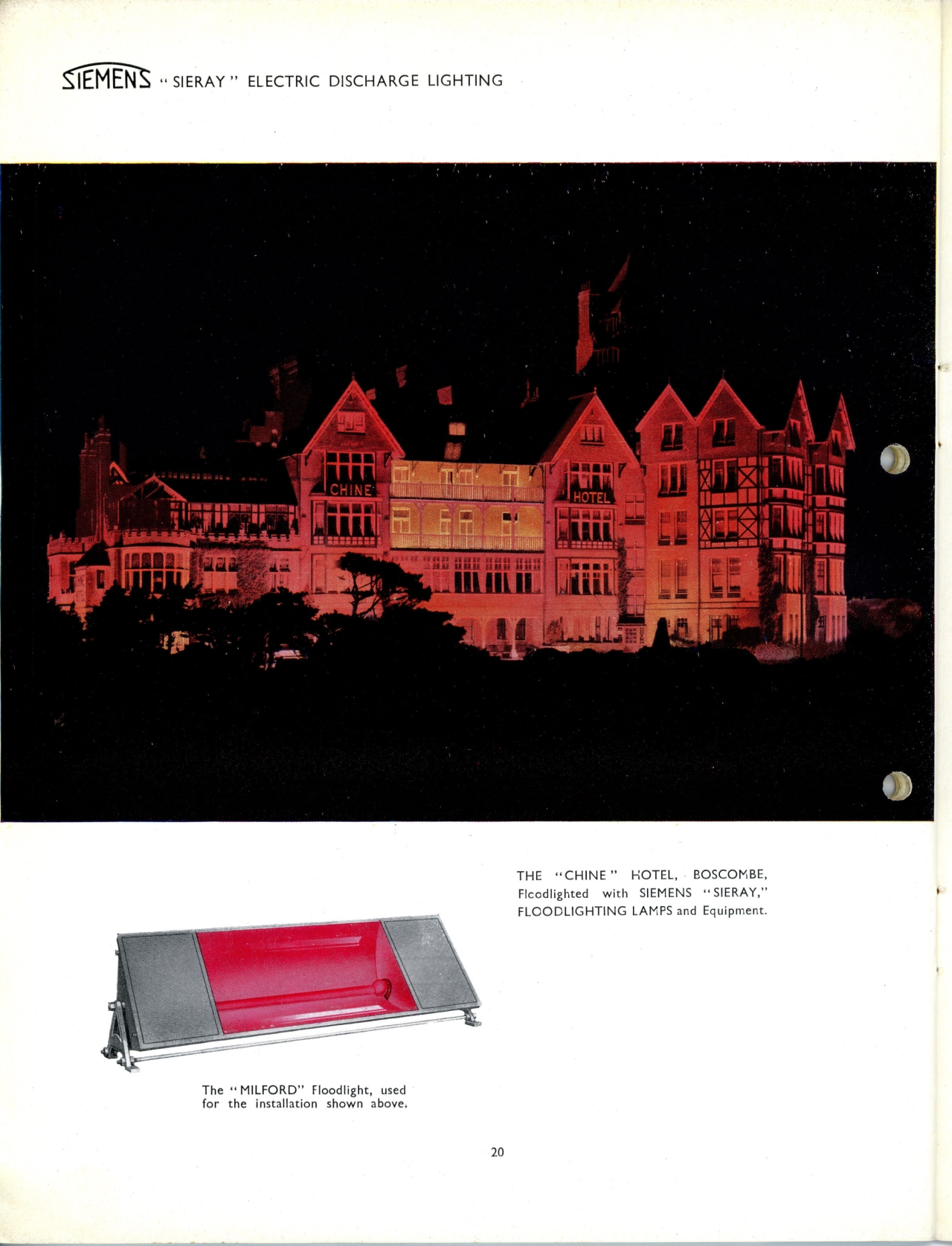

Source: SIERAY-catalogue, May 1937

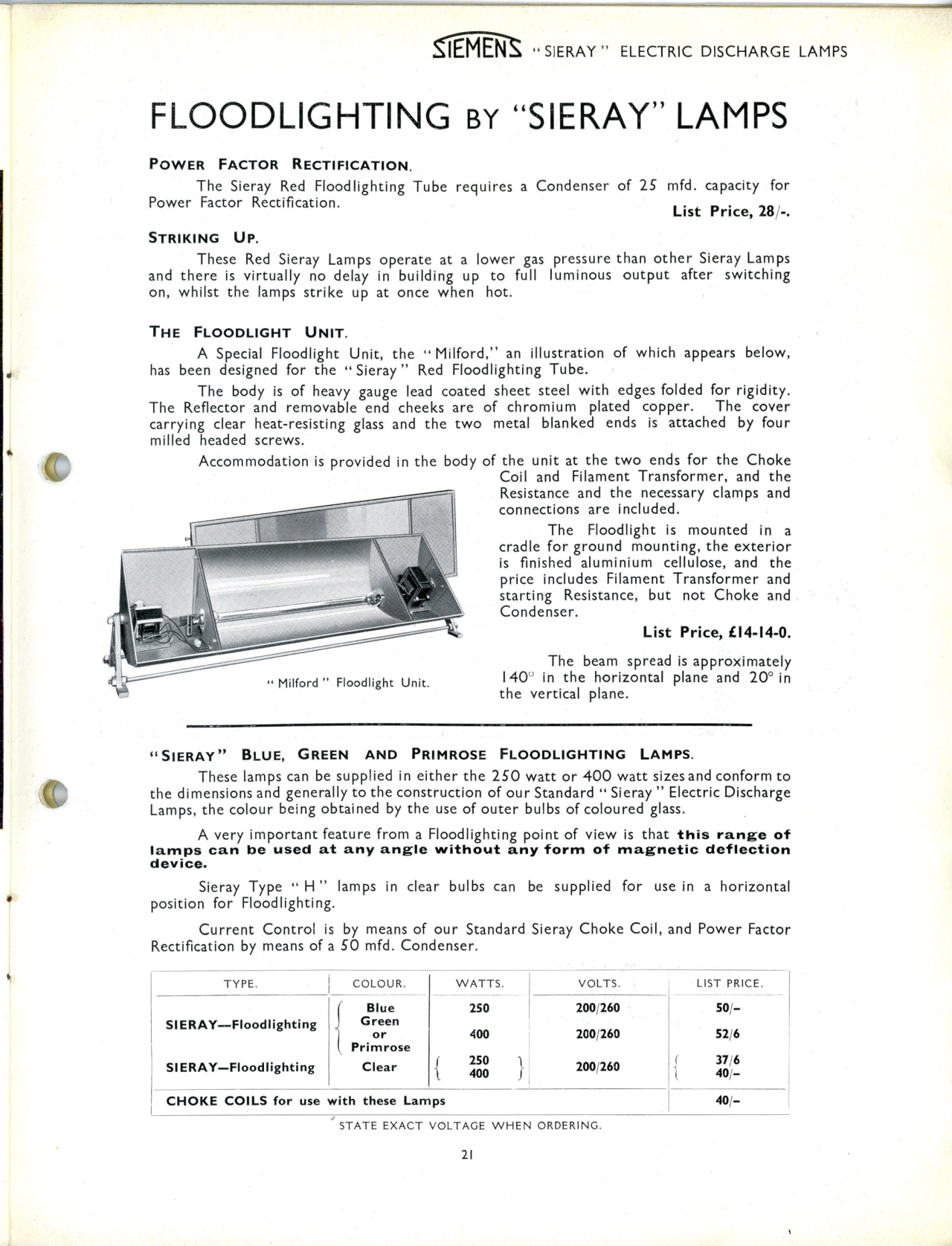

Source: SIERAY-catalogue, May 1937



Source: SIERAY-catalogue, May 1937


I didn't know there were different colors.
« Last Edit: February 04, 2023, 06:33:23 AM by Olav » Logged
Alex
Member
***
Offline

Gender: Male
View Posts
View Gallery

feel free to ask questions


Re: Why the British neon floodlight lamp were called NE/H « Reply #31 on: February 04, 2023, 02:51:01 AM » Author: Alex
Hello Olav,

In James's RFT Catalogue from the 1950s a NHRT/350/6/220 which is a very similar lamp of this is described. I do not know if this is actual product made by one of the east german manufacturers or improted. If it is home made I would be very interested in were it was made. I suspect Berlin but I am not sure.

http://www.lamptech.co.uk/Documents/Catalogues/RFT%20-%20Catalogue%20-%20195X%20DE.pdf


Best regards,

Alex
Logged

Glück auf ⚒️

Olav
Member
***
Offline

Gender: Male
View Posts
View Gallery


Olav Kettner
Re: Why the British neon floodlight lamp were called NE/H « Reply #32 on: February 04, 2023, 06:39:08 AM » Author: Olav
Hello Alex,

thanks for your note.
This lamp in the RFT catalog will have been similar, regardless of the manufacturer (probably BGW Berlin or import).

Regards

Olav
Logged
James
Member
*****
Offline

Gender: Male
View Posts
View Gallery


WWW
Re: Why the British neon floodlight lamp were called NE/H « Reply #33 on: February 04, 2023, 04:09:28 PM » Author: James
I wonder if the BGW lamps may have been imported - these linear neon floodlighting lamps were also produced in Russia, by at least the great factory of MELZ in Moscow.
Logged
Olav
Member
***
Offline

Gender: Male
View Posts
View Gallery


Olav Kettner
Re: Why the British neon floodlight lamp were called NE/H « Reply #34 on: February 07, 2023, 02:18:18 PM » Author: Olav
A small addition from the book "Electric Lamps", first edition 1949:


Source: Electric Lamps, 1949, ELMA, page 133



Source: Electric Lamps, 1949, ELMA, page 134

The book is very informative, a pdf is on James' website: Electric Lamps, ELMA
Logged
HomeBrewLamps
Member
*****
Offline

Gender: Male
View Posts
View Gallery


SodiumVapor 105843202020668111118 UCpGClK_9OH8N4QkD1fp-jNw majorpayne1226 187567902@N04/
Re: Why the British neon floodlight lamp were called NE/H « Reply #35 on: March 18, 2023, 12:03:35 PM » Author: HomeBrewLamps
What an honourable and delightlful reply!  I know that I have also made similar mistakes in the past, unfortunately far too long ago to find again and be able to improve.  Although my response did take this thread rather off-topic for which I apologise, I do prefer to avoid secrets and keep discussions in the open.  Experience has taught that the private messages really have little effect at the necessary level.  Some members continue to leave us, and other lighting resources are growing stronger at our expense.

A long time ago another of our former frequent contributors (Globe-Collector) helped me understand this situation, with his memorable re-introduction to the Dunning-Kruger Effect.  That is a psychological learning curve which plots Experience vs Confidence.  It applies to all of us and is rather well illustrated here:


In the beginning when we learn any new subject, we all start with zero competence and as such have little confidence.  Some people just aren't interested in learning, and will remain at that level.  Others proceed to acquire a small amount of knowledge, and naturally this results in rapidly increased confidence.  Such people will begin to answer each other's questions as if they know what they are talking about - but invariably don't actually understand the half of it and will give misleading answers and ask what seem like ridiculous questions.  This phase is known as the Peak of Mount Stupid.  Different people suffer this to varying extents and for different lengths of time.  Some of the most dangerous managers I ever encountered at work had clearly got stuck at that point, and such people are superbly illustrated in another wonderful article from Sylvania's former R&D Director John Waymouth - author of the revered book "Electric Discharge Lamps".  If you have time to read his article to its conclusions about corporate management, see here.

Anyway, nearly everyone who persists with their learning then comes to the realisation that in fact the subject is a lot more complex than they initially thought - and they begin to recognise just how little they actually know.  Despite increasing knowledge, their confidence tumbles and leads them into the Valley of Despair.  Such people are enthusiastic and still want to learn but are scared by how much knowledge still has to be acquired.  Eventually we all pass through this phase, and only afterwards do we genuinely begin to learn valuable information, and become more competent and confident.  This is a necessarily slow process.  It can take a whole lifetime to reach the peak of our productivity in terms of knoweldge.  And unfortunately it doesn't end there - because old age then sets in, and with it comes forgetfulness which distorts our earlier memories and we become once again less confident despite having previously acquired a marvellous rich knowledge!

During my academic studies I loved the science and hated all the psychological and philosphical stuff that we were forced to learn (and then quickly forgot).  Such as the importance of this Dunning-Kruger curve, which I had heard of 25 years before I was eventually reminded of its importance, again thanks to contacts made via LG.  Only after several decades I begin to realise that actually, to be effective at what we do, we all need to have a better understanding of the psychology of how people work and how to maximise their own chances of learning.  An understanding of phenomena like Dunning-Kruger can help us become more tolerant and welcoming.  It is nobody's fault if we think they got stuck at the peak of mount stupid because years ago, we all passed through that phase.  Instead it's our responsibility to help them learn enough to pass as quickly as possible through both that phase as well as the valley of despair.  The problems on an international forum like LG are also compounded by language differences.  English is a wonderfully broad means of communication, but completely lacks the depths of many of the emotions and interpretations that are built into the languages of some of our other members.  Typical translation tools still fail dismally to capture their actual meanings.  What might seem like blunt or rude statements are often anything but that.  So rather than putting the onus on the writer to compose messages in impeccable English, I find it helps if the reader always considers that perhaps the words we are seeing might not actually be the same as people would state in their own languages.  We should try to look past that before reacting too negatively and focus on the technical content - while at the same time recognising that none of us here know it all, and that a lot of what we all think we know is actually still fundamentally flawed.  Sometimes I cringe when I read my own responses of just a few years ago, and recognise how easy it is to speak with apparent confidence but now see that I really didn't understand what I was talking about back then!

I've been wanting to say this for a long while. But I have lacked the words to do so. You put it quite well. And Max's addition to this statement prettymuch ices the cake. Some people fail to see that some members may have minds that function in quite different ways compared to their own. The amount of bullying I've seen here and there was one of the contributing factors in my recent absence. Among other things.
« Last Edit: March 18, 2023, 12:08:35 PM by HomeBrewLamps » Logged

~Owen

:colorbulb: Scavenger, Urban Explorer, Lighting Enthusiast and Creator of homebrewlamps 8) :colorbulb:
